7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX

Name: 7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX
Brand: Kimpok Technology Co., Ltd
SKU: 7.2G 3W
Price: 145.00 USD
Availability: InStock

Productgegevens:

Plaats van herkomst:	CHINA
Merknaam:	Kimpok
Certificering:	CE Cerfication
Modelnummer:	7.2G 3W
Document:	7.2G 3W 64CH VTX Manual.pdf

Gedetailleerde informatie

Plaats van herkomst:

CHINA

Merknaam:

Kimpok

Certificering:

CE Cerfication

Modelnummer:

7.2G 3W

Document:

7.2G 3W 64CH VTX Manual.pdf

Aantal kanalen:

64 kanalen

Vermogensniveaus:

25 MW/1000 MW/3000 MW

Ingangsspanningsbereik:

DC 7V-36V

Type antenne-interface:

SMA vrouwelijke stoel met binnengat

Smart Audio Protocol:

IRC -zwerver

Markeren:

High Light

Markeren:

7.2GHz drone video transmitter

3W analog VTX

64-channel FPV transmitter

Handelsinformatie

Min. bestelaantal:

Prijs:

Onderhandelbaar

Verpakking Details:

Internationale standaardpakking

Levertijd:

3-7 werkdagen

Betalingscondities:

L/C, Western Union

Levering vermogen:

4.000 stuks per maand

Productbeschrijving

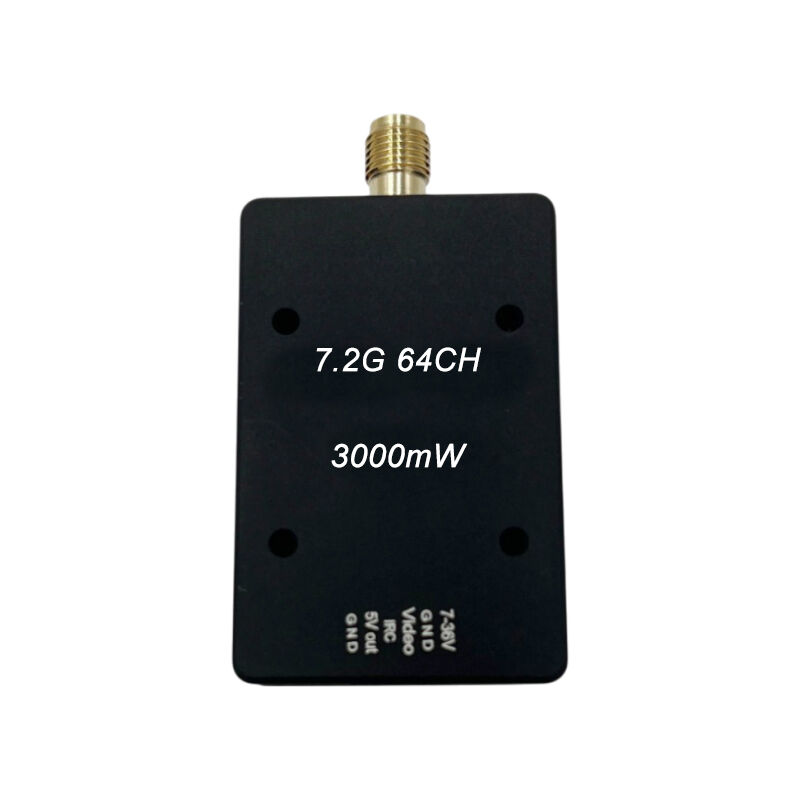

7.2GHz 3W 64Channel Drone Analog Wireless Video Transmitter VTX

Product Overview

This 7.2GHz analog wireless video transmitter (VTX) is designed for drone FPV applications, featuring 3W maximum power and 64 channels within the 6110MHz-7210MHz frequency range. With wide voltage compatibility (7V-36V) and advanced heat dissipation, it delivers stable video transmission for various drone applications.

Key Features

Multi-Channel Operation: 64 channels across 8 frequency bands (A, B, E, F, R, P, H, U) for interference-free transmission
Adjustable Power: Three levels (25mW, 1000mW, 3000mW) with Pit mode for different flight distances
Wide Voltage Range: Compatible with 2-8S lithium batteries (7V-36V) without additional converters
Thermal Protection: Automatic power reduction when exceeding 100°C, returning to normal at 95°C
Efficient Cooling: Aluminum alloy housing with heat sink and cooling fan for stable operation
Standard Interfaces: SMA female antenna connector and 1.0 6P power/signal interface

Product Benefits

Enhanced Compatibility: Works with most FPV receivers and drone battery configurations
Reliable Performance: Temperature protection and robust cooling ensure stable transmission
Flexible Operation: Easy power and channel switching for different flight scenarios
Durable Construction: Aluminum alloy housing and protective features extend product life

Applications

FPV Racing: Clear video for high-speed flights with power options for indoor/outdoor use
Aerial Photography: Long-distance transmission for professional imaging
Agricultural Drones: Stable video feed for precision crop monitoring
Inspection Drones: Reliable transmission for infrastructure surveys

Technical Specifications

Feature	Specification	Application
Frequency Range	6110MHz-7210MHz (64 channels, 8 bands)	All FPV scenarios, especially multi-device operations
Transmitting Power	25mW/1000mW/3000mW adjustable with Pit mode	Short/medium/long range operations
Input Voltage	DC 7V-36V (2-8S LiPo compatible)	All drone types with 2-8S batteries
Cooling System	Aluminum housing + heat sink + cooling fan	High-power continuous operation
Smart Audio	IRC Tramp protocol support	Remote parameter adjustment
Physical Dimensions	5328.8516mm, 25.85g (20*20mm mounting)	Compatible with most drone frames
